Submerged Microfilter Series
Submerged Mechanical Filter for Aquaculture
Submerged mechanical filtration equipment for suspended-solids removal in commercial aquaculture, RAS systems and intensive fish farming.
Product Overview
Submerged Mechanical Filter for Aquaculture Solids Removal
Pursun Tech submerged mechanical filters separate suspended solids from circulating aquaculture water through a 316L stainless-steel filter screen and automatic intelligent backwash system. The equipment can serve as an independent mechanical stage within a RAS filtration system. Review the wider filtration equipment range for related components.
- Intelligent dual control backwash
- Stainless steel material for the main body
- High-pressure water pump with stable, reliable power
- 316L stainless steel filter screen
- Semi-submerged installation
Submerged Mechanical Filter Series
Standard Series

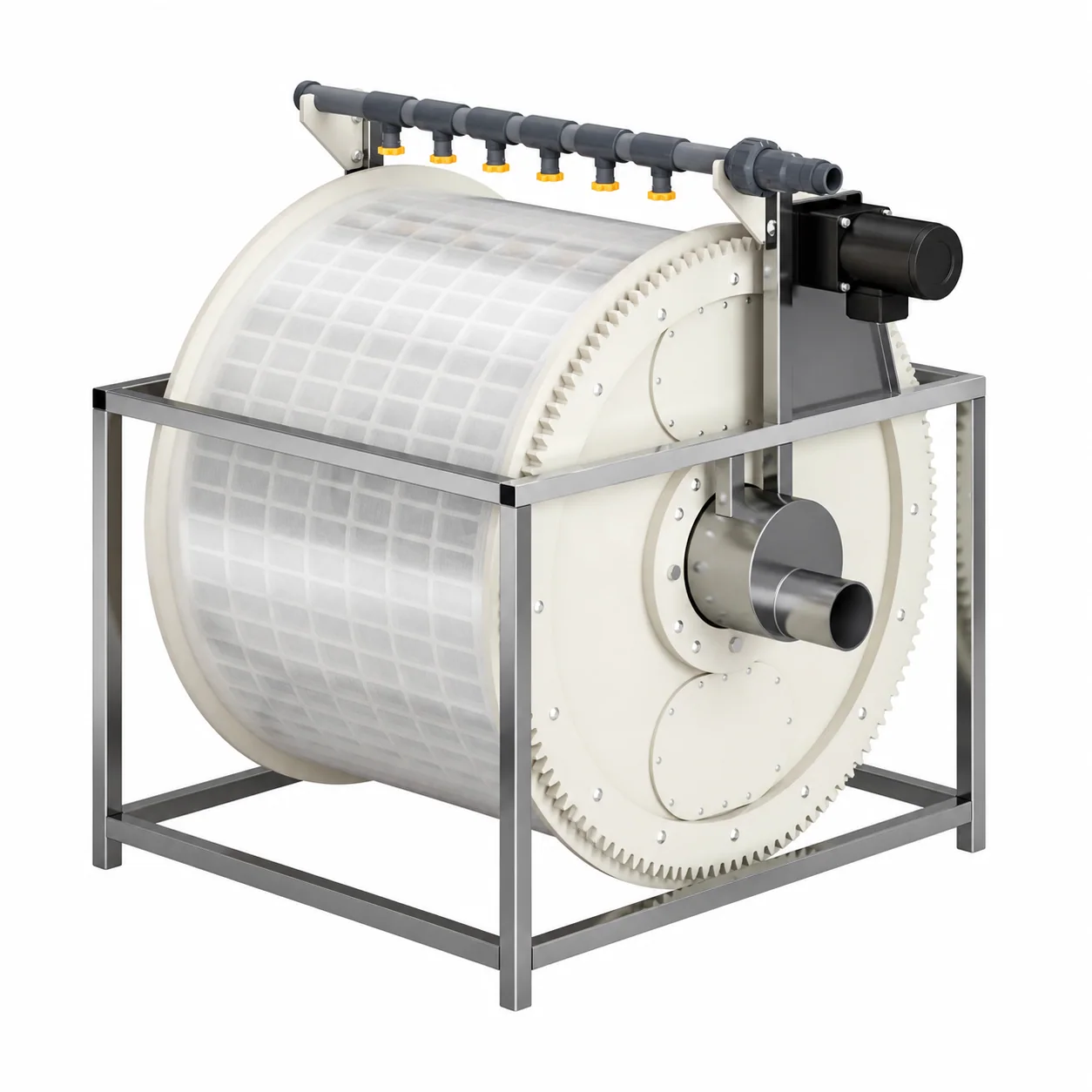

The Standard series uses a compact single-drum structure for semi-submerged installation. Eight models from 10T to 300T cover small, medium and large commercial aquaculture systems.
- Intelligent dual control backwash
- Stainless steel material for the main body
- High-pressure water pump with stable, reliable power
- 316L stainless steel filter screen
- Semi-submerged installation
Technical Parameters
Standard Series Models
Eight Standard models are available from 10T to 300T. Final specifications should be confirmed before production.
Swipe horizontally on mobile to view all columns.
| Model | Box size (mm) | Overall size (mm) | Inlet caliber (mm) | Sewage caliber (mm) | Motor power | Pump power |
|---|---|---|---|---|---|---|
| 10T | 592 × 480 × 520 | 735 × 480 × 520 | 110 | 50 | 60W | 370W |
| 20T | 741.5 × 600 × 670 | 820 × 600 × 670 | 160 | 75 | 60W | 370W |
| 30T | 801.5 × 800 × 882 | 830 × 800 × 882 | 160 | 75 | 120W | 370W |
| 50T | 985 × 800 × 900 | 1065 × 800 × 900 | 160 | 75 | 120W | 370W |
| 100T | 1125 × 800 × 870 | 1130 × 800 × 900 | 160 | 75 | 120W | 370W |
| 150T | 1330 × 840 × 920 | 1330 × 840 × 935 | 250 | 75 | 200W | 370W |
| 200T | 1520 × 1200 × 1220 | 1680 × 1200 × 1235 | 250 | 75 | 200W | 370W |
| 300T | 1875 × 1250 × 1330 | 2050 × 1250 × 1345 | 350 | 75 | 750W | 370W |
High-Capacity Series
Open Inlet Classic Series
The Open Inlet Classic series is designed for large-flow aquaculture systems. Its enclosed stainless steel structure and open inlet arrangement support high-capacity installations from 300T to 500T.
- Intelligent dual control backwash
- Stainless steel material for the main body
- High-pressure water pump with stable, reliable power
- 316L stainless steel filter screen
- Semi-submerged installation
Technical Parameters
Open Inlet Classic Models
Three high-capacity models are available for large commercial aquaculture and RAS installations.
Swipe horizontally on mobile to view all columns.
| Model | Box size (mm) | Overall size (mm) | Inlet caliber (mm) | Sewage caliber (mm) | Motor power | Pump power |
|---|---|---|---|---|---|---|
| 300T (Open inlet classic) | 2130 × 1400 × 1600 | 350 × 1400 × 1600 | 985 | 75 | 750W | 1100W |
| 400T (Open inlet classic) | 2600 × 1600 × 1700 | 2810 × 1600 × 1700 | 1180 | 75 | 750W | 1100W |
| 500T (Open inlet classic) | 2690 × 1800 × 1850 | 2900 × 1800 × 1850 | 1200 | 75 | 1500W | 1500W |
Controller Device
Intelligent Dual-Control Backwash
The intelligent controller coordinates the motor and high-pressure water pump to support reliable automatic backwash operation and consistent filter-screen performance.
- Automatic backwash control
- Stable high-pressure cleaning
- Simple operating interface
Model Selection
Choose the Correct Submerged Mechanical Filter Model
Model selection should consider:
- Required system flow
- Inlet and sewage pipe diameter
- Installation dimensions
- Motor and pump power
- Regional voltage standard
Applications
Designed for Commercial Aquaculture
01
Commercial Fish Farms
Continuous suspended-solids removal for intensive production.
02
RAS Systems
Mechanical pre-filtration for recirculating aquaculture systems.
03
Hatcheries
Stable water circulation support for sensitive production stages.
04
Industrial Aquaculture
Scalable 10T–500T filtration for engineered water-treatment layouts.
Regional Configuration
Global Electrical Compatibility
Motor, pump and controller voltage should be confirmed for the destination market before ordering.
110V
/ 60Hz
220V
/ 50Hz
230V
/ 50Hz
240V
/ 50Hz
Final electrical configuration should be confirmed before ordering.
Technical FAQ
Submerged Mechanical Filter FAQ
Key information for product evaluation and model selection.
A submerged microfilter is a semi-submerged mechanical filtration unit that captures suspended solids on a rotating filter screen and restores screen capacity through automatic high-pressure backwash.
The Standard series uses a compact single-drum arrangement and includes models from 10T to 300T. The Open Inlet Classic series uses a larger enclosed open-inlet structure and includes 300T, 400T and 500T models.
Standard models include 10T, 20T, 30T, 50T, 100T, 150T, 200T and 300T. Open Inlet Classic models include 300T, 400T and 500T.
The supplied specification lists a 316L stainless steel filter screen and a stainless steel main body.
An intelligent dual-control system coordinates the motor and high-pressure water pump to clean the filter screen and maintain continuous solids-removal performance.
Regional configurations can be confirmed for 110V/60Hz, 220V/50Hz, 230V/50Hz or 240V/50Hz before ordering.
